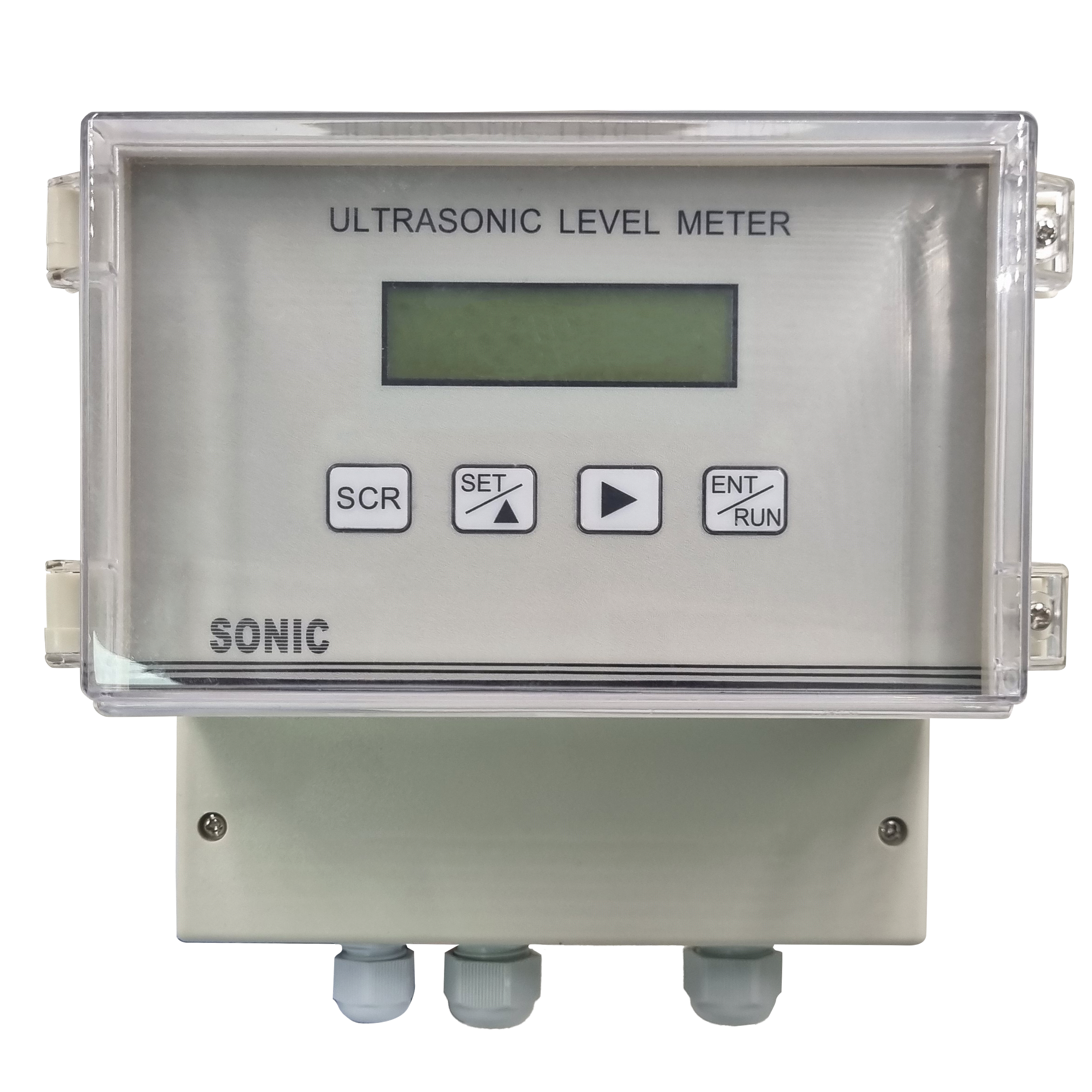

Ultrasonic Level Meter
The MTCF ultrasonic level gauge performs accurate measurements of liquids and solids using the transit time principle, without physical contact with the material. It is ideal for applications in tanks, reservoirs, and silos, whether open or closed.
The transit-time ultrasonic operating principle is based on the emission of ultrasonic pulses that are reflected by the material being measured and detected by the sensor. The distance is calculated based on the time it takes for the pulse to travel through the space between the sensor and the material level, without physical contact.
Ultrasonic Sensor
Analog signal output 4 to 20 mA
RS 485Modbus RTU communication output (optional)
Protection class Sensor IP67 and Controller IP65
Level or Distance Measurement
Accuracy and resolution 0.25% (≤20 meters) - 1mm 0.50% (≥50 meters) - 1cm
Measuring range Specific sensor for distances of 5 - 10 - 15 - 20 - 30- 40 and 50 meters.
Operating temperature -20°C to +80°C
